Up to 1,000 kg per drawer.
3 or 5 vertical pull-out drawers with 6 tool frames each and 810 mm drawer depth. Thanks to high-quality, heavy-duty casters, the drawers can be moved easily.
Tool Management · Tool Storage
»keeper«
For complete tools and tool holders
Five pull-out drawers. Six tool frames in each.
810 mm drawer depth. Access from both sides.
1,000 kg per drawer. Moves easily.
420 storage locations. Each one with a name.
Order you can see.
OverviewOne cabinet.
One cabinet.
A whole tool store.
Complete tools and tool holders in vertical pull-out drawers – clearly labeled, neatly organized, purely mechanical or electronically assisted.
- 420storage locationswith 5 drawers – labeled D1-P1 to D5-P84
- 1,000kgmax. weight per vertical drawer
- 810mmdrawer depth
- 300mmmax. tool diameter (3 drawers) – 150 mm with 5 drawers
What's inside.
Everything has
its place.
Features01 / 05
For all standard systems.
SK, HSK, VDI, PSC, blanks, adapter tool posts and wooden inserts – configured for space-saving storage. The tool frames can be adjusted individually to the desired height, depending on tool length.
Every location has a name.

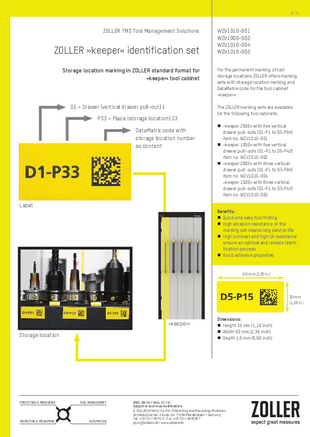

Storage location in ZOLLER standard format (D1 = drawer 1, P33 = place 33) and as a DataMatrix code – highly abrasion-resistant, high-contrast and UV-resistant. Label 60 × 30 mm.
Within reach from both sides.
Easy access to the tools from both sides of the pull-out drawers increases work safety. Adjustable leveling feet ensure secure placement, even on uneven floors.
An LED for every drawer.
Electronic locks and an LED display for each drawer: combined with the »quickPick« control software, storage and removal become simpler – controlled via side-mounted panel PC, »cockpit« or TMS workstation, also over the network.
DetailsWell thought out.
Well thought out.
Down to the last place.
The digital twin, the labels, the inserts – a closer look at the »keeper«.
The integrated 3D layout in »quickPick« realistically replicates your store within the software.
Move your pointer across it.Every storage location in text form and as a DataMatrix code.

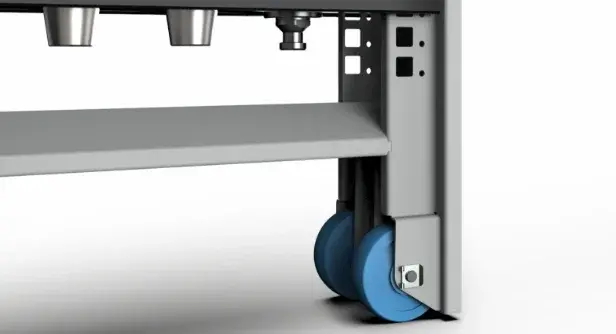

Max. weight per vertical drawer – heavy-duty casters keep the drawers easy to move.

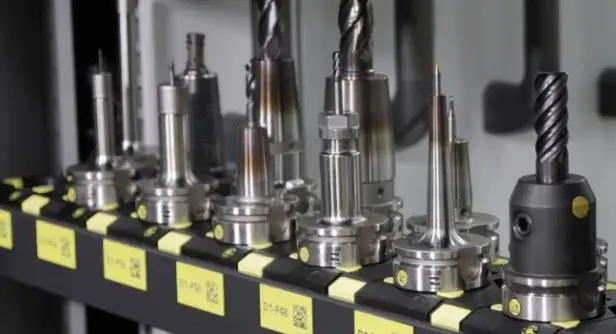

For all standard systems – configured for space-saving storage.
The adjustable leveling feet ensure that the »keeper« can be placed securely even on uneven floors.
Tool insertsA matching insert
A matching insert
for every system.
SK
- SK 30Size S, Width 72 mm, max. 14 per frame
- SK 40Size S, Width 72 mm, max. 14 per frame
- SK 50Size L, Width 95 mm, max. 8 per frame
HSK
- HSK 25, 32Size S, width 72 mm, max. 14 per frame
- HSK 40Size S, width 72 mm, max. 14 per frame
- HSK 50size S, width 72 mm, max. 14 per frame
- HSK 63size S or L, width 72 or 95 mm, max. 14 or 8 per frame
- HSK 80size L, width 95 mm, max. 8 per frame
- HSK 100size L, width 95 mm, max. 8 per frame
VDI
- VDI 30Size S, width 72 mm, max. 14 per frame
- VDI 40Size S, width 72 mm, max. 14 per frame
PSC
- PSC 40Size S, width 72 mm, max. 14 per frame
- PSC 50Size S, width 72 mm, max. 14 per frame
- PSC 63Size S, width 72 mm, max. 14 per frame
Blank
- B58width 58 mm, max. 8 per frame
- B75width 75 mm, max. 8 per frame
- B120width 120 mm, max. 8 per frame
Adapter tool post
- D 78 VSHSize 1, width 95 mm, max. 8 per frame
Wooden inserts
- Wooden insert/blankwidth 328 mm, max. 2 per frame
- D 4214 drill holes, width 328 mm, max. 2 per frame
ConfigurationWhich »keeper«
Which »keeper«
is right for you?
With ZOLLER Smart Cabinets, you're in charge: Make your preselection and establish contact with our ZOLLER sales team—we'll be happy to advise you and configure the model of your choice.
3 drawers
- Storage locations
- 252 (D1-P1 to D3-P84)
- Max. tool diameter
- 300 mm
- Dimensions (H × W × D)
- 2,100 × 1,000 × 1,050 mm
- Version
- mechanical or electronic
5 drawers
- Storage locations
- 420 (D1-P1 to D5-P84)
- Max. tool diameter
- 150 mm
- Dimensions (H × W × D)
- 2,100 × 1,000 × 1,050 mm
- Version
- mechanical or electronic

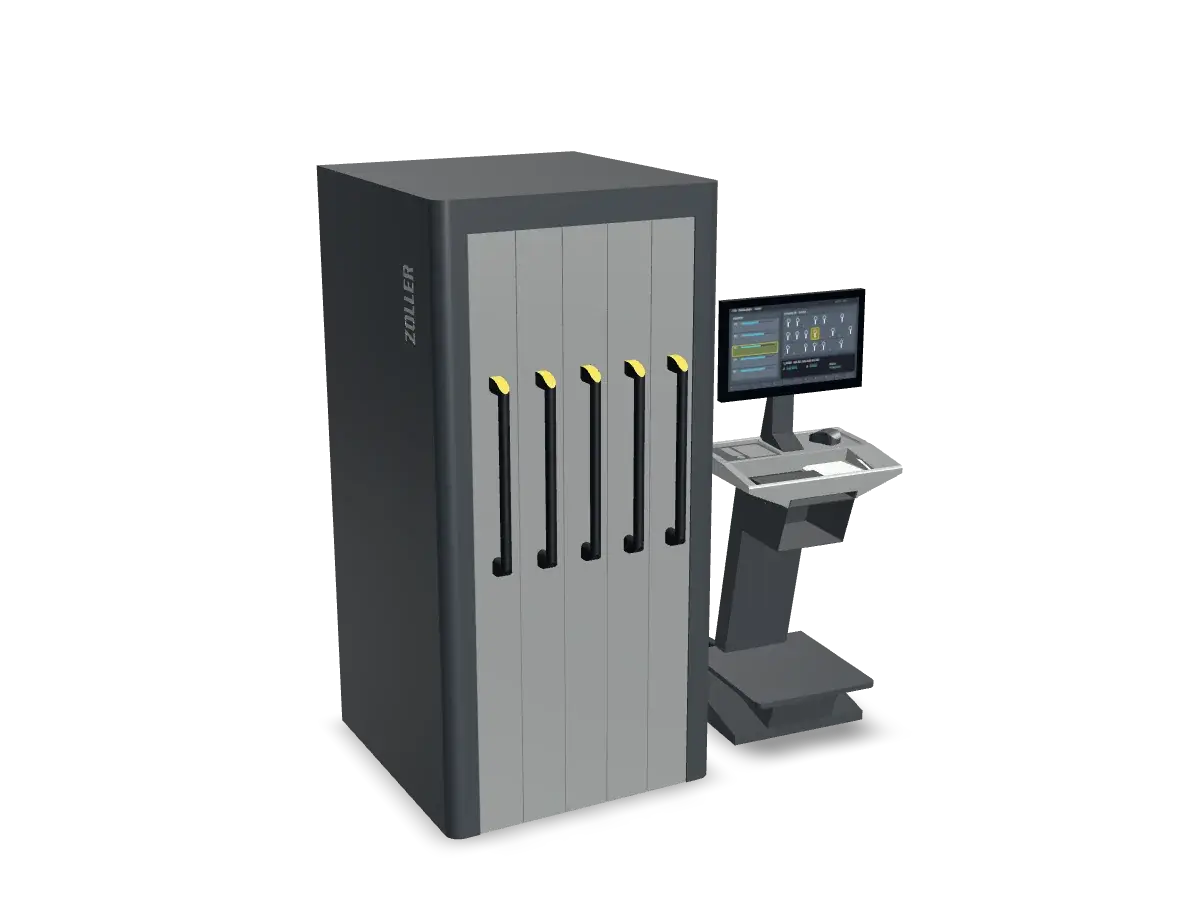

Augmented reality · 3D
»keeper« at full size – on your shop floor
With augmented reality, the unit appears true to scale exactly where it will work: walk around it and check space and access before you order. On a computer, rotate and zoom the CAD model right here.
- Width
- 1.81 m
- Depth
- 1.51 m
- Height
- 2.10 m
- Footprint
- 2.73 m²
Overall dimensions of the CAD model in this configuration – may vary depending on equipment.
Open on your phone or tablet
Scan the QR code and place the unit at full size in your room – on iPhone, iPad or an Android device with ARCore.
Loading 3D model …
Drag to rotateSoftware & IntegrationEvery booking.
Every booking.
Just a few clicks.
All storage locations are clearly and transparently represented in the TMS Tool Management Solutions software. This makes the controlled removal and logging of tools simpler than ever.
TMSZOLLER TMS Tool Management Solutions is not required to use the Smart Cabinets. You can start quickly and simply with a basic package for the Smart Cabinets and conveniently add additional modules or packages (BRONZE, SILVER, or GOLD) later.
- ≈ 10×ZOLLER customers run stock movements around ten times faster when they combine their Smart Cabinets with the ZOLLER TMS Tool Management Solutions software.
- 2.5 yearsThe cost advantage is so enormous that the investment often pays for itself after just two and a half years.
Source: brochure »Tool Storage with Smart Cabinets«.
Software & IntegrationTechnical data
Everything at a glance.

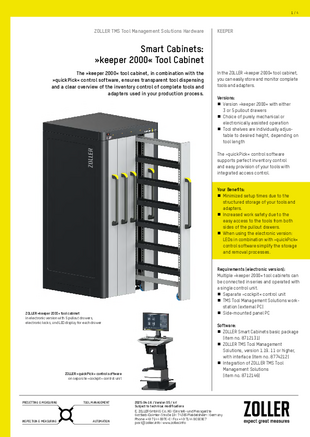

According to the »keeper 2000« tool cabinet data sheet (version 05, 2025).
- Model
- »keeper 2000« with 3 or 5 pull-out drawers
- Dimensions (H × W × D)
- 2,100 × 1,000 × 1,050 mm
- Weight
- 430 kg
- Capacity
- 3 or 5 vertical pull-out drawers with 6 tool frames each
- Storage locations
- 252 (3 drawers) or 420 (5 drawers) – labeled D1-P1 to D3-P84 or D5-P84
- Max. tool diameter
- 300 mm (3 drawers) · 150 mm (5 drawers)
- Max. weight per vertical drawer
- 1,000 kg
- Drawer depth
- 810 mm
- Distance between tool frames
- 170 mm with standard equipment · compartment height can be customized
- Connection values
- 230 V / 50 Hz / < 1 kVA
- Operation
- purely mechanical or electronically assisted (electronic locks, LED display for each drawer)
- Control
- »cockpit« control unit, side-mounted panel PC, TMS Tool Management Solutions workstation (external PC), other Smart Cabinet or no control unit
- Software
- ZOLLER Smart Cabinets basic package; ZOLLER TMS Tool Management Solutions version 1.19.11 or higher with interface
- Multiple cabinets
- Multiple »keeper 2000« can be connected in series and operated with a single control unit
FAQ
Frequently asked questions.
Can the Smart Cabinets also be controlled remotely via the network?
Yes, these can also be controlled over the network.
Which ZOLLER TMS Tool Management Solutions software do I need to control the Smart Cabinets?
ZOLLER TMS Tool Management Solutions is not required to use the Smart Cabinets. You can start quickly and simply with a basic package for the Smart Cabinets and conveniently add additional modules or packages (BRONZE, SILVER, or GOLD) later.
Your »keeper«Let's plan
Let's plan
your tool store.
Make your preselection and get in touch with the ZOLLER sales team – we'll be happy to advise you and configure the model of your choice.
Goes well with
»toolOrganizer«
»toolStation«
»toolCart«Sources: zoller.info »keeper« · data sheet »keeper 2000« tool cabinet, version 05 (2025) · flyer »keeper« identification set · brochure »Tool Storage with Smart Cabinets«. Tools shown in the 3D views are examples.
